We are a rebar fabricator, not a manufacturer.
Due to the competitive nature of these products, we generally only sell them in the Chicago Metro Area.
STOCK SIZES
PLAIN OR EPOXY COATED BARS AVAILABLE
ALL PRIME DOMESTIC STOCK
| Bar Size | Area* / SQ. Inches | Weight / Pounds Per Ft | Diameter* / Inches |
|---|---|---|---|
| #3 | .11 | .376 | .375 |
| #4 | .20 | .668 | .500 |
| #5 | .31 | 1.043 | .625 |
| #6 | .44 | 1.502 | .750 |
| #7 | .60 | 2.044 | .875 |
| #8 | .79 | 2.670 | 1.000 |
| #9 | 1.00 | 3.400 | 1.128 |
| #10 | 1.27 | 4.303 | 1.270 |
| #11 | 1.56 | 5.313 | 1.410 |
Nominal Dimensions.
|
|
|
|
|
|
|
|
|
Tie Wire
16 Gauge Black Annealed Wire
3-1/2# Hip Coils (385 ft/roll)
20 Rolls/carton
PVC Coated wire for epoxy bars also available
Galvanized wire for added corrosion resistance also available
9 Gauge Black Annealed Wire
100# Shoulder Coils (1700 ft/roll)
Contact us for other available wire gauges

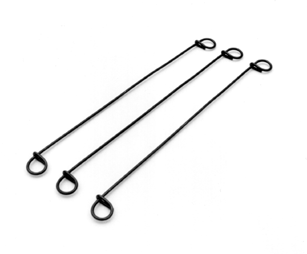

16 Gauge Black Annealed Wire
6" & 8" Lengths
5000 pcs/bundle
PVC Coated and galvanized wire ties also available
Other gauges and lengths are available
Ideal Reel Tie Wire Reel
Cast aluminum construction
Lifetime warranty

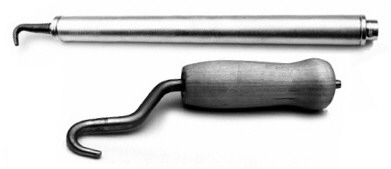

"Automatic" twister
or
Wood handled manual twister
Wire Mesh
| STYLE DESIGNATION | STEEL AREA Sq. In. per ft. | WEIGHT Approx Lbs. Per 100 sq. ft. | ||
|---|---|---|---|---|
| Current Designation (By W - Number) | Previous Designation (By Steel Wire Gage) | PANELS/SHEETS | ||
| 6 x 6 - W1.4 / W1.4 | 6 x 6 - 10 / 10 | .028 | .028 | 21 |
| 6 x 6 - W2.1 / W2.1 | 6 x 6 - 6 / 8 | .048 | .040 | 29 |
| 6 x 6 - W2.9 / W2.9 | 6 x 6 - 6 / 6 | .058 | .058 | 42 |
| 4 x 4 - W2.9 / W2.9 | 4 x 4 - 6 / 6 | .058 | .087 | 62 |
| 4 x 4 - W4.0 / W4.0 | 4 x 4 - 4 / 4 | .120 | .120 | 86 |
| ROLLS | |||
|---|---|---|---|
| Current Designation (By W - Number) | Previous Designation (By Steel Wire Gage) | STEEL AREA Sq. In. per ft. | WEIGHT Approx Lbs. Per 100 sq. ft. |
| 6 x 6 - W1.4 / W1.4 | 6 x 6 - 10 / 10 | .028 | 21 |
| 6 x 6 - W2.9 / W2.9 | 6 x 6 - 6 / 6 | .048 | 42 |
| 6 x 6 - W2.1 / W2.1 | 6 x 6 - 6 / 8 | .040 | 29 |
PANELS/SHEETS AVAILABLE PLAIN, EPOXY COATED, OR GALVANIZED
CALL FOR PRICING & AVAILABILITY ON OTHER SIZES
Wall & Form Ties
For use with "Modular" (i.e. Symons) type forming systems.
All flat ties are 3000# test.
We stock 8", 9", 10", &12" ties in 100 piece boxes.
Sizes up to 48" are stocked in 100 piece bundles.
Wedge bolts are available in 500 piece boxes.
For use with "Modular" (i.e. Symons) type forming systems.
10" & 12" Loop Panel Ties are stocked in 100 piece boxes.
10" & 12" Gang Loop Ties are stocked in 100 piece boxes.
Gang bolts are available in 100 piece boxes

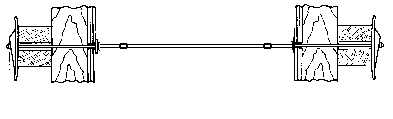

For use with plywood & Jahn forming systems.
4-3/4" & 8-1/4" ends with washers are stocked in 8", 9", 10" & 12" lengths.
100 pieces per box.
Other sizes and ties with cones are available on special order.
Snap tie wedges are available in 100 piece boxes.
For use with all 1-1/8" plywood forming systems
6", 8", 9", 10", & 12" ties are available in 250 piece boxes.
Ties over 12" are stocked in 50 piece bundles.
